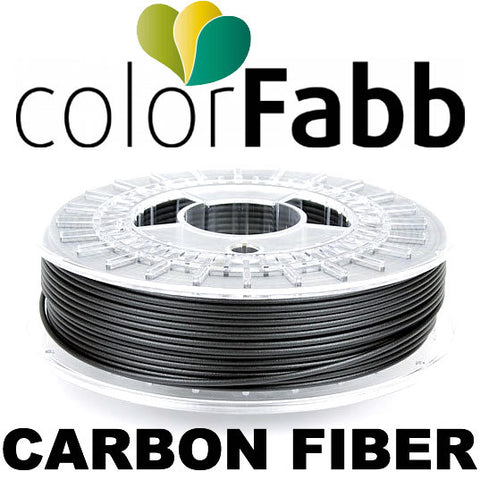

ColorFabb XT-CF20 Carbon Fiber - Black - 2.85mm
SKU: 23B2 CFBXTCF2BK
colorFabb XT-CF20 is a copolyester based carbon fiber composite material that is based on the unique Amphora 3D polymer from Eastman Chemical and is loaded with no less than 20% specially sourced carbon fibers suitable for 3D Printing.
Combining carbon fibers in filaments material is not a new idea, but colorFabb has been able to combine a lot of desired properties into 1 new material :
- Extreme High Flex Modulus (6.2 GPa), twice as stiff as PLA/PHA
- Moderate strain at break (8-10%), so no extreme brittle filament, but toughness
- High Glass Temp. (Tg = 80C)
- Very high Melt strength
- Very high Melt Viscosity
- Good dimensional accuracy and stability
- Low odor / Styrene Free solution
- Easy processing on many platforms
- High attractive matt black surface
CARBON FIBER IS ABRASIVE
A special point of attention is the abrasive nature of the carbon fibers. In general these fibers will accelerate the nozzle-wear of brass nozzles, much faster than unfilled filaments. There colorFabb recommends to use nozzle’s from Stainless steel or hardened copper alloys.
Just think of all the great applications for a variety industries, that now will have a material that performs according to expectations. Functionality, stiffness, dimensional stability, heat resistant, what more can you ask? Applications in the RC Industry / Drones / Aerospace / Automotive / Prototyping and many more can now be developed on your desktop 3D Printer.
All colorFabb 3d printing filaments are produced in our own production facility, situated in the Netherlands. Since no external parties are involved in the making of colorFabb filament we can ensure consistent quality on every order.
Excellent diameter tolerance
An important machine in our production are the laser measurement systems used to check the diameter of our filament real time during production. It’s measured over 1000 times per second and helps us guarantee that each spool of colorFabb 3d printing filament produced within tolerance. We can guarantee 0,05mm +/- on both 2,85mm and 1,75mm colorFabb 3d printing filament, which means you can rest assured that your printer is extruding the exact amount of material.
Within minutes of production a spool of colorFabb 3d printing filament is sealed airtight with a double barrier foil. To go the extra mile, we’ll also seal the fancy cardboard box that we use to ship our product. You can make sure colorFabb 3d printing filament is fresh and ready for 3d printing when you’re done unboxing.
The colorFabb testlab features a wide range of popular 3d printers. We’re continuously testing on our 3d printers to keep checking the quality of the materials we produce and to develop exciting new materials for the maker community. If your not sure how to print with our materials on your 3d printer, please contact email@example.com
ColorFabb was founded as a brand of Helian Polymers, a sister company of Peter Holland which have been active in the master batch and additives for the plastics processing industry. Our knowhow, network and partnerships is driving material innovations and quality. You can expect colorFabb to keep on developing interesting new materials, which will be tested on a variety of printers to make sure it’ll get the job done.
|NET WEIGHT: 0.75 KG (1.65 LB)|
|240°C - 260°C||
