Raise3D PRO3 3D Printer

$5,449.00

Raise3D

In Stock.

Introducing the Pro3 Series

Agile Production Made Simple

Forged from the Pro2 Series, Raise3D’s newly launched Pro3 Series professional dual extruder 3D printers meet the needs of both production and multi-sized rapid prototyping, with high precision and round-the-clock stable operation. The Pro3 Series is comprised of the Pro3, with a build volume of 300x300x300mm, and the Pro3 Plus, with a build volume of 300x300x605mm, fulfilling the requirements of large-scale production and multi-sized rapid prototyping. A high-quality printer design that includes enhanced features and a smart assistant system known as EVE, all of which make the Pro3 Series dual extruder 3D printers an excellent option for professional 3D printing.

The Pro3 Series dual extruder 3D printers connect with Raise3D’s 3D printing software ecosystem, that includes a 3D slicing program, ideaMaker, an open-software template called ideaMaker Library, and our cloud-based 3D printing software RaiseCloud.

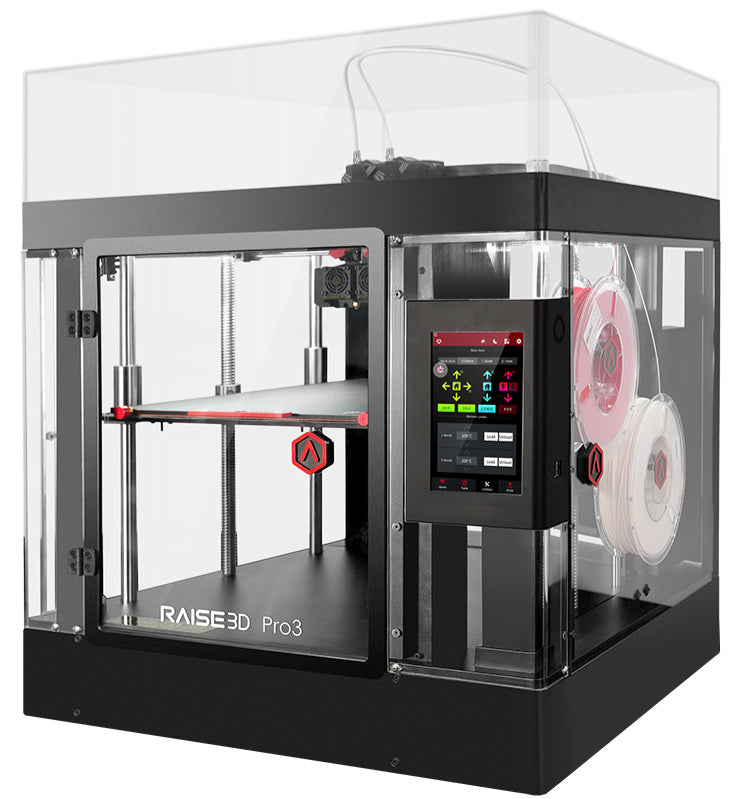

Raise3D PRO3 3D Printer Canada

Enhanced Printing Platform Features

The Pro3 Series features upgraded printing platform features for high-quality printing performance and a better overall experience.

  • The auto bed leveling makes setting up a 3D printer quicker and simpler.
  • The flexible build plate allows for the effortless removal of 3D printed parts.
  • The Z-axis rod stiffness increased by 75% to deliver a more stable performance.

These structural changes enable the Pro3 Series to provide better print results and an easier printing experience.

Interchangeable Hot End and Extruder Cover

The Pro3 Series is equipped with an independent modular extruder with a dual extrusion system. This allows the Pro3 Series to print using a variety of filaments, reduce clogging, and allow the convenient disassembly and replacement of components. The hot end of the Pro3 Series is easy to remove, which can be done without using tools, making it simple to replace and maintain. Users can also easily take off the front cover of the extruder to accurately locate common printing occurrences such as filament jams.

Air Flow Manager for Better Heat Dissipation

The Air Flow Manager of the Pro3 Series is located on the back of the printer, improving heat dissipation and air circulation, creating a stable environment inside the print chamber. Equipped with a HEPA air filter, Air Flow Manager can also filter and clean the air inside the chamber.

EVE Smart Assistant

The Pro3 Series has a built-in EVE assistant system, preloaded with common printing problems and corresponding solutions. The EVE assistant can guide users to accurately locate and resolve issues that could affect the final print job. The EVE assistant has a function that gives users reminders about regular scheduled interventions to ensure that printer maintenance is performed on time. It also helps reduce maintenance time and communication costs for an efficient maintenance process.

Professional Dual Extruder 3D Printers

A dual extruder 3D printer can perform more advanced functions such as producing dual color models and dual material models. A professional dual extruder 3D printer will have additional design features resulting in a higher quality print job.

The Pro3 Series professional dual extruder 3D printers have a single-side nozzle lifting technology with fast nozzle switching. Therefore, the nozzles can lift independently and switch within a second, and without being affected by 3D printing material or temperature.

Lightweight Cable with Digital Temperature Measurement

The Pro3 Series replaces the drag chain cable with a lightweight cable, to reduce the weight of the extruder and keep the center of gravity in the middle during printing for more stable print quality.The Pro3 Series also uses digital temperature measurement, for an accurate temperature reading to help prevent jamming.

The importance of Auto Bed Leveling

Bed leveling is the process of confirming that the printing platform is as level as possible. The Pro3 Series has this leveling procedure as an automated function. Auto bed leveling will maintain the distance between the print nozzles and the bed, to create a uniform build area. This improves bed adhesion and allows the nozzle to adjust to even the most minor surface contour changes.

HD Camera, Eligible for Upgrade

The Pro3 Series uses a HD camera to monitor the entire 3D printing process of every print job. This camera operates by connecting to RaiseCloud, allowing users to keep track of every print job remotely and while on the move. This ability to check the 3D printing process gives peace of mind. The Pro3 Series also comes with an upgraded CMOS sensor to ensure better image quality.

Capable of Printing a Variety of Filaments Up to 300℃

PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA/ PP/ PVA/ Nylon/ Glass Fiber Infused/ Carbon Fiber Infused/ Metal Fill/ Wood Fill

The Pro3 Series is compatible with a variety of 3D printing materials (known as filaments) to meet project requirements

Depending on the project goals, more than one 3D printing filament is necessary to accommodate varying structural or functional requirements (for example, some requirements may include flexibility, and strength). Sometimes multiple filaments are required within the same print job. Having a 3D printer that is compatible with different filament types is both cost-saving and practical for print jobs requiring multiple filaments, giving it extra versatility other printers cannot match.

Power Loss Recovery

Either a power outage or a filament outage (when the filament runs out) can cause a print job to be lost if they occur in the middle of the 3D printing process. However, the Pro3 Series has a filament run-out sensor on its extruders to alert when the filament is about to run out and saves the print job. It also has a second-generation power loss function to save the printing status in the event of a power outage and can continue printing from the same point when power is restored.

Automatic Detection

Another safety feature of the Pro3 Series is that it can automatically detect when a door is opened and will immediately pause the print.

Flexible build plate for easy removal of printed models

The Pro3 Series is equipped with flexible build plate. The flexible build plate can be used to easily remove printed parts while minimizing potential damage to the final print. Additionally, the flexible build plate can quickly regain its shape and return to printing quickly. The Pro3 Series is also compatible with a rigid build plate, as well as a high-temperature borosilicate glass build plate.

The updated HEPA air filtration removes toxic particles released during the 3D printing process

The Pro3 Series uses HEPA air filtration to clean the air of any particles (including nano-particles) released during the 3D printing process. The HEPA air filter works effectively in classrooms, offices, and in large and small workspaces and operates silently, quietly working in the background of any work area.

7-inch touch screen for efficiency and monitor the printing process with 3D printing software

The Pro3 Series’ 7-inch touch screens allow users to interact with the printer directly. It also provides on-screen assistance and visual model selections to simplify operating and monitoring both the 3D printer and 3D printing process. As with all Raise3D 3D printers, the Pro3 Series is compatible with ideaMaker, a 3D slicing program, and RaiseCloud, a cloud-based 3D printing management platform. This wireless connection allows users to keep track of every print job while on the move.

The full metal frame acts as a reliable motion system for smooth movement and precise positioning for higher quality printing

High-quality 3D printing comes from high-quality 3D printers. The Pro3 Series professional dual extruder 3D printer uses a full metal frame to create a specific motion system that allows the machine to smoothly glide as it prints. This motion system works with precise positioning to ensure 3D print jobs are as accurate as possible. Interchangeable nozzles allow the Pro3 to print at different levels of detail.

Pro3 Series Technical Specifications: Click to Download PDF
