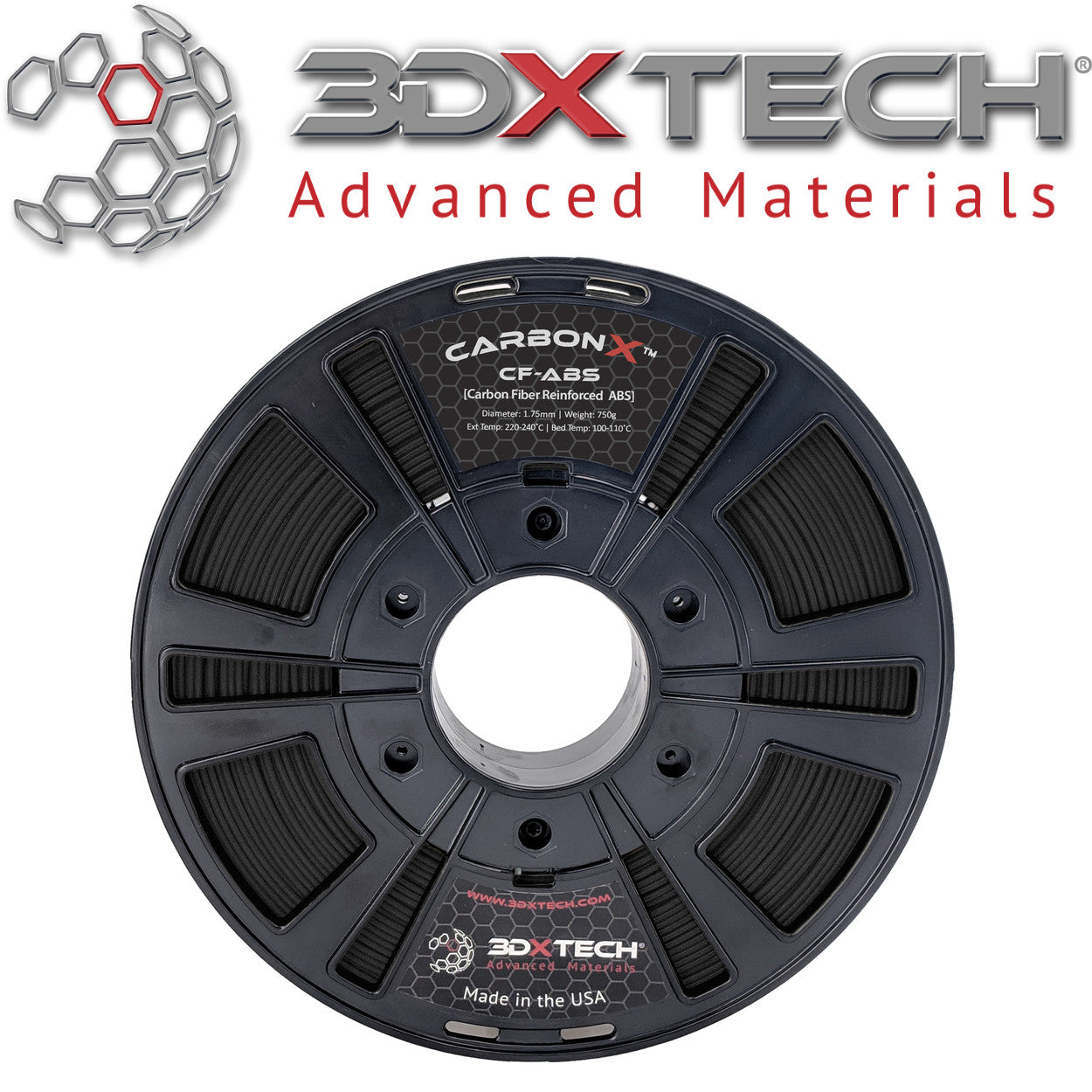

CARBONX™ Carbon Fiber ABS Filament - Black - 2.85mm - 0.75KG

Only 2 left
SKU: 09-C-5-D-4145 Barcode: 7512345852
$30.00 USD
-43% $53.00 USD $30.00 USD

Do you need help choosing the right material or 3D Printer for your application or require a quote to purchase? Contact Us

3d filament net weight MATERIAL NET WEIGHT: 0.75KG
Custom sizes may be available, contact us for details.
3d print settings PRINT SETTINGS: SEE BELOW.
Print settings listed in the product description below.
3d data sheet Canada DATA SHEETS & COFC: AVAILABLE UPON REQUEST.
Contact us to inquire about documentation availability.

CarbonX™ ABS-CF Carbon Fiber Reinforced ABS 3D Filament

3DXTech CarbonX Nylon Carbon Fiber Filament Canada

CarbonX™ CF-ABS is a high-performance carbon fiber reinforced ABS filament ideal for anyone that desires a structural component with high modulus, excellent surface quality, dimensional stability, light weight, and ease of printing. Made using 15% High-Modulus Carbon Fiber (not carbon powder or milled carbon fiber).  Made in the USA using premium Sabic MG-94 ABS and high modulus carbon fiber.

CarbonX™ CF grades are abrasive and will quickly wear out a brass nozzle.  We recommend using Hardened Steel Nozzles

3d printing temperature guideline Printing
Temperature:

Notes:
220°C - 240°C
  • Extruder:  220-240°C.  CarbonX™ CFR is a filled product and has a higher melt viscosity vs. unfilled resin.  Therefore, it is sometimes necessary to print at higher temperatures to allow the resin to flow properly.
  • Bed Temp:  100-110°C
  • Bed Prep:  3DXTech Kapton Tape, ABS/Acetone Slurry
  • Nozzle: We currently recommend minimum 0.4mm orifice.
  • Layer Height:  Ideal layer height is 60% of nozzle diameter.  We do not recommend printing layers below 0.25mm with carbon fiber grades.  Lower than 0.25mm may create too much back pressure in the hot end and result in poor feeding, jams, drive gear clicking, and eating a notch into the filament.
  • Support Material:  We recommend our AquaTek™ water soluble support
